Drilling series
HY5220B
Drilling capacity:20mm
Motor power:450/550/750W
Class Of Speed:16
Share This Product:
  • Specifications
16 speed change bench Drill Press/Woodworking drilling machine HY5220B

Quick Detail:
Drilling capacity:20mm
Motor power:450/550/750W
Class Of Speed:16
Table size: 290*290mm

Description:
HY5220B bench Drill Press/Woodworking drilling machine belongs to one of our most economic manual woodworking drilling machine. It is new condition not used woodworking drilling machine. And it is small in size and delicate in design. This woodworking drilling machine is made in China. The main features are as below:

1. Chuck guard is standard accessories

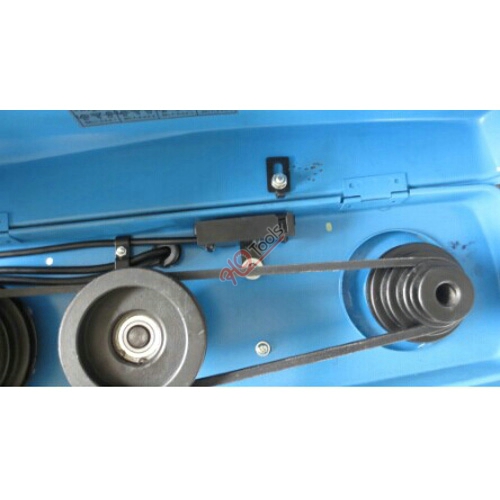

2. Belt drive
3.Widely used, simple to operate, and a wide range of processing.
4.Good quality and reasonable factory price.
7. Made in China, supplier from Shanghai China.
8. Good after sale service.
9. Power supply could be customized 110v/220V.
10. All machines have to pass the checklist of the machine precision before shipment

Specifications:
ModelHY5220B
Drilling capacityØ20mm(3/4")
Motor power450/550/750W
Chuck Capacity5-20mm
Spindle stroke85mm
Class Of Speed16
Speed 50/60Hz180~2770/220~3320 R.P.M
Spindle taperMT2
Auto-feeding step of worktable180mm
Max.distance from spindle end to surface of table685mm
Max.distance from spindle end to surface of base1175mm
Swing360mm
Table size290X290mm
Base Size460X270mm
Column DiameterØ72mm
Height1600mm
N.W./G.W.68/72kg
Packing size1000X500X300mm
Number Picture

Chuck guard

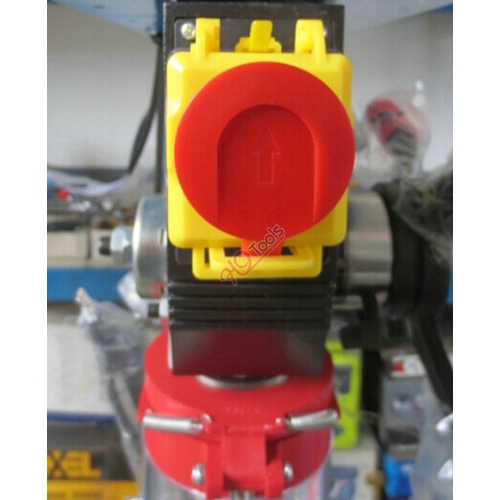

Front  switch

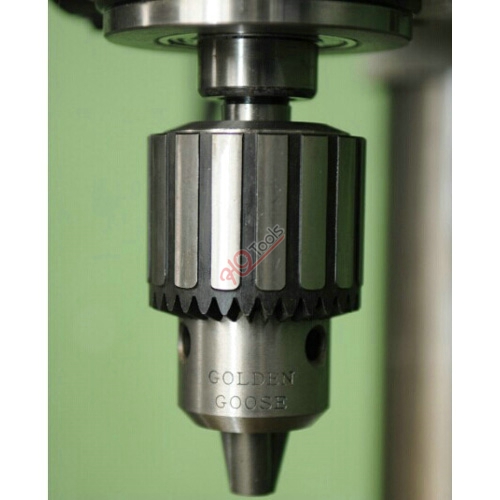

Keyless drill chuck

Key type drill chuck

Vice

Laser
