Drilling series
HY5232B
Drilling capacity: 32mm
Motor power:1100/1500W
Class Of Speed:12
Share This Product:
  • Specifications
Bench drill press/floor drilling machine HY5232B
Quick Detail:
Drilling capacity: 32mm
Motor power:1100/1500W
Class Of Speed:12
Spindle taper:MT4
Table size:420*280mm
Description:
HY5232B Bench drill press/floor drilling machine belongs to one of our most economic manual drill press machine. It is new condition not used Bench drill press/floor drilling machine. And it is medium sized and delicate in design. This Drilling machine is made in China. The main features are as below:
1. Keyed safety switch prevents accidental starting
2.2-speed settings to accommodate various materials and thicknesses

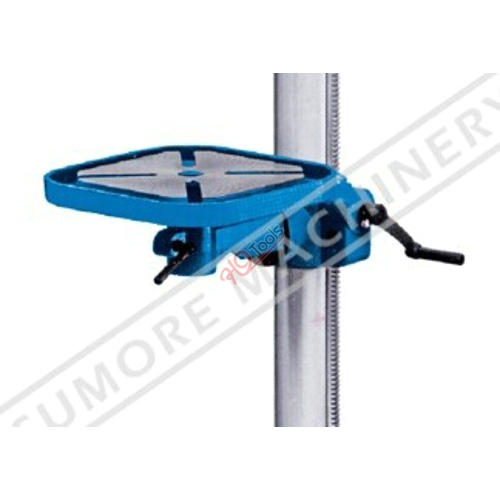

3.420 X 480mm cast iron worktable, height adjustable
4. Pinion table elevation makes adjusting the table height easy and accurate
5. Caled steel fence helps align, guide and brace work pieces, stop block for repetitive drilling jobs
Specifications:
ModelHY5232B
Drilling capacityØ32mm(1—1/4")
Motor power1100/1500W
Chuck Capacity5-20mm
Spindle stroke120mm
Class Of Speed12
Speed 50/60Hz150~2450/180~2940 R.P.M
Spindle taperMT4
Auto-feeding step of worktable255mm
Max.distance from spindle end to surface of table745mm
Max.distance from spindle end to surface of base1205mm
Swing510mm
Table size420X480mm
Base Size560X450mm
Column DiameterØ92mm
Height1710mm
N.W./G.W.125/130kg
Packing size1415X650X305mm
Number Picture

Chuck guard

Front  switch

Keyless drill chuck

Key type drill chuck

Vice

Laser
